Figure 5

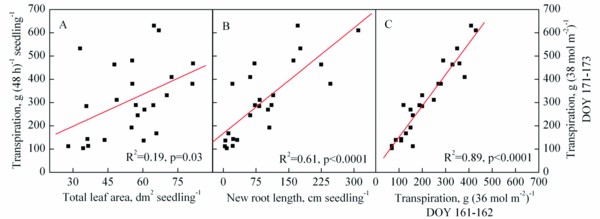

Correlations between accumulated transpiration from DOY 171 to 173 and seedling leaf area (A) and lengths of new roots (B). The correlation between accumulated transpiration measured in the periods from DOY 171 to 173 and DOY 161 to 162 is shown in C. In panel C the unit g per light intensity sum is used to show that the light intensity was very similar in the two periods.
