Figure 8

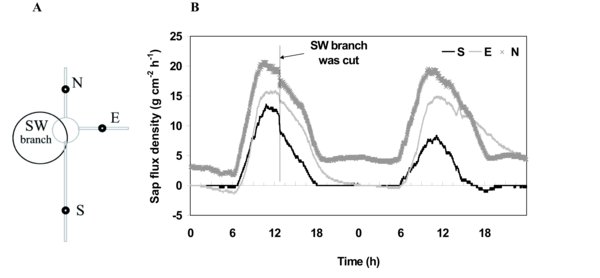

(A): Scheme of the cut branch (Exp. 2) and positioning of the single HFD sensors on three small superficial roots of the second sample maple. Sap flow dynamics (B) in the measured roots during day of branch severing and on the following day. Vertical line indicates the moment of cutting the SW branch.
