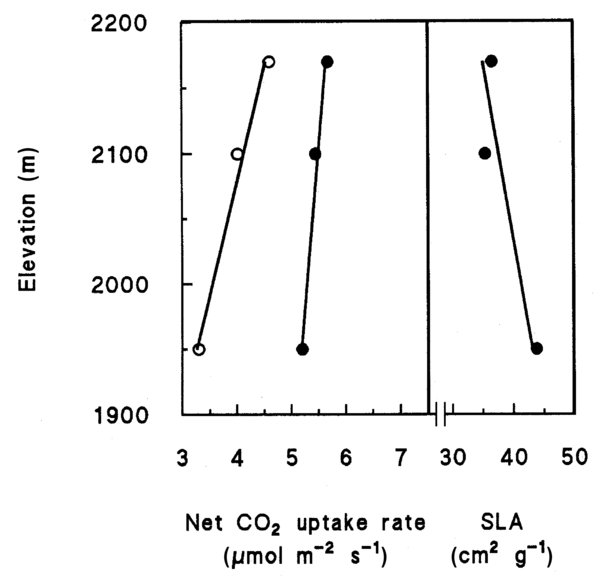

Figure 4

Mean maximum net CO2 uptake rate obtained in fall (open symbols) and summer (closed symbols) and specific leaf area (SLA) with respect to elevation in the timberline ecotone at Mt Patscherkofel between 1950 and 2 175 m a.s.l. Points were fit by linear regression: mean maximum net CO2 uptake rate fall: y = 0.0057x − 7.9, r2 = 0.98; mean maximum net CO2 uptake rate summer: y = 0.0021x + 1.1, r2 = 0.97; SLA: y = − 0.0037x + 115, r2 = 0.82.
