Figure 4

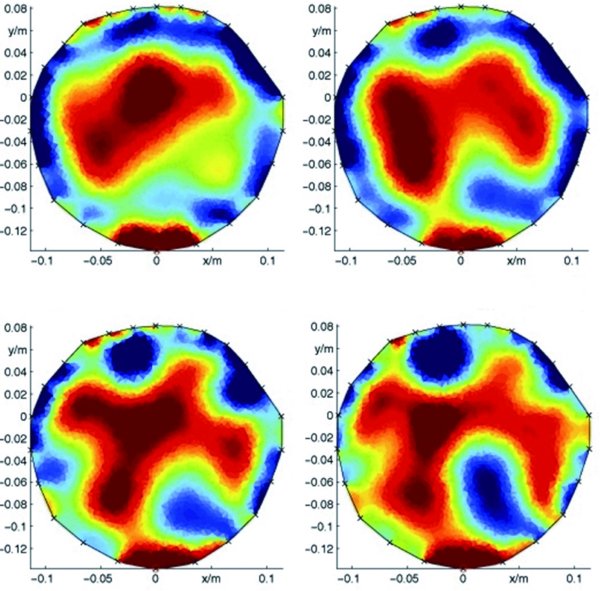

Tomograms of tree No. 3 made 10 cm above the dowels 3 (upper left), 10, 13 and 21 (lower right) month after infection with Trametes versicolor. Areas of low electric resistivity indicate increasing areas of infected wood. (A colour version of this figure is available at
