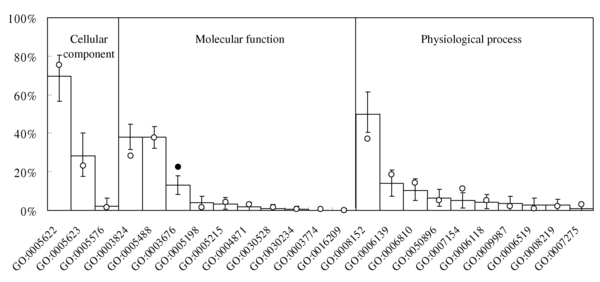

Figure 1

Functional profile of the 1263 C. sieboldii putative unigenes and the 108 microsatellite-containing putative unigenes annotated according to GO slim terms (squares and circles, respectively). The error bars indicate 95% confidence limits for the frequencies of putative unigenes annotated with the specific GO slim term when 108 putative unigenes were randomly sampled 1000 times. Significantly highly represented GO slim terms amongst putative unigenes with microsatellites are indicated by the closed circle. The GO IDs and corresponding terms are as follows: GO:0005622, intracellular; GO:0005623, cell; GO:0005576, extracellular region; GO:0003824, catalytic activity; GO:0005488, binding; GO:0003676, nucleic acid binding; GO:0005198, structural molecule activity; GO:0005215, transporter activity; GO:0004871, signal transducer activity; GO:0030528, transcription regulator activity; GO:0030234, enzyme regulator activity; GO:0003774, motor activity; GO:0016209, antioxidant activity; GO:0008152, metabolic process; GO:0006139, nucleobase, nucleoside, nucleotide and nucleic acid metabolic process; GO:0006810, transport; GO:0050896, response to stimulus; GO:0007154, cell communication; GO:0006118, electron transport; GO:0009987, cellular process; GO:0006519, amino acid and derivative metabolic process; GO:0008219, cell death; GO:0007275, multicellular organismal development.
